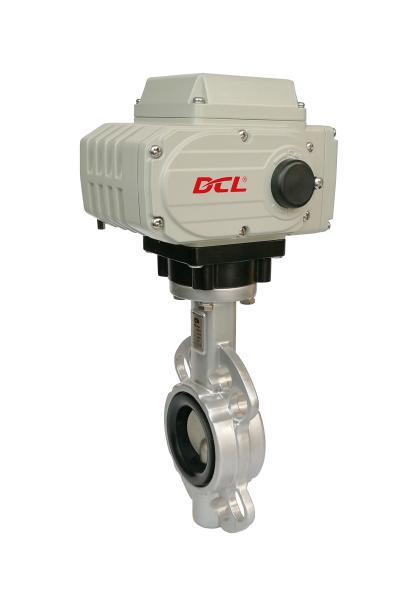

Wafer Type DN40 Electric Butterfly Valve EPDM Seat

Wafer Type DN40 Electric Butterfly Valve EPDM Seat

Electric Butterfly Valve Introduction

The Electric Butterfly Valve is characterized by simple structure, small volume, light weight. The butterfly valve is full open or closed when the disc is rotated a quarter turn with good flow control characteristic

Electric Butterfly Valve Features

• Body type: wafer or lug
• Body material: Ductile iron, SS304(CF8), SS316(CF8M)
• Seat material: EPDM, PTFE, NBR(Buna-N) available
• sure PN: Designed for commercial and industrial applications up to 200 psi
• Stem design: Available in square shaft for easy mounting of actuators
• Top flange: ISO 5211 direct mounting of actuators
• One piece shaft: Maintains disc position.
• Shaft pins: Enables a vibration free connection between the shaft and the disc..
• O ring seal: Provides a seal to interior stem and bushings.

Electric actuator

• The smallest size and most compact design in torque range from 1000Nm to 2500Nm
• Extra-large super hard copper alloy final stage worm gear to reduce force and abrasion of gear
• Double row chain from gear box to worm gear stem ensure torque transfer strength
• Strong motor equipped to make sure high start torque beyond rated torque in 10% under rated voltage
• Over 10000 times full stroke life cycle test with full rated load under duty rate 80%
• Match up to DN650 butterfly valve, DN350 ball valve and DN1200 ventilation butterfly valve and flap valve.

Specification of Electric Butterfly Valve

DN40 Electric Butterfly Valve

Wafer Type Electric Butterfly Valve

DN40 electric actuated butterfly valve

Wafer Type DN40 Electric Butterfly Valve EPDM Seat Images
